Applications
Highway Construction & Maintenance
Used for producing asphalt mixtures for new highways and pavement rehabilitation, ensuring durable, smooth and load-bearing pavements.
Mobile Asphalt Mixing Plant
Mobile asphalt mixing plants are ideal for temporary asphalt supply in road expansion or repair, with flexible mobility and quick setup.
Urban Road Projects
Supports urban road upgrades, pothole repairs and emergency maintenance, with compact design for flexible deployment in urban areas.
Fixed Asphalt Mixing Plant
Fixed plants serve large-scale municipal projects, with stable efficiency, high precision and large output for continuous production.
Airport Runway & Taxiway Paving
High-precision mixing ensures uniform, durable asphalt for airport runways and taxiways, meeting heavy-load requirements.
Mountainous or Remote Area Construction
Mobile plants adapt to mountainous/remote sites, with flexible relocation to solve asphalt transportation difficulties.

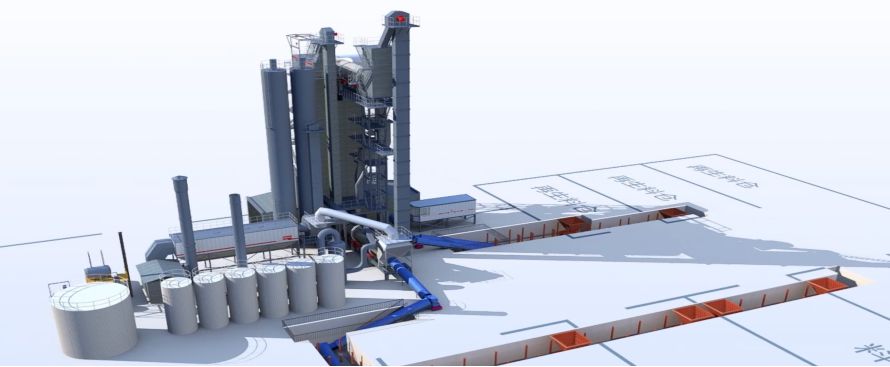

The Advantages of 3D Dynamic
Enhanced Visualization
3D dynamic models provide realistic, interactive representations of complex structures, allowing stakeholders to explore every angle and detail.
Improved Communication
By simulating real-world scenarios, these demonstrations bridge the gap between technical teams and non-technical audiences, ensuring clarity and alignment.
Cost and Time Efficiency
Virtual prototyping reduces the need for physical mock-ups, minimizing material waste and accelerating decision-making processes.
Case show

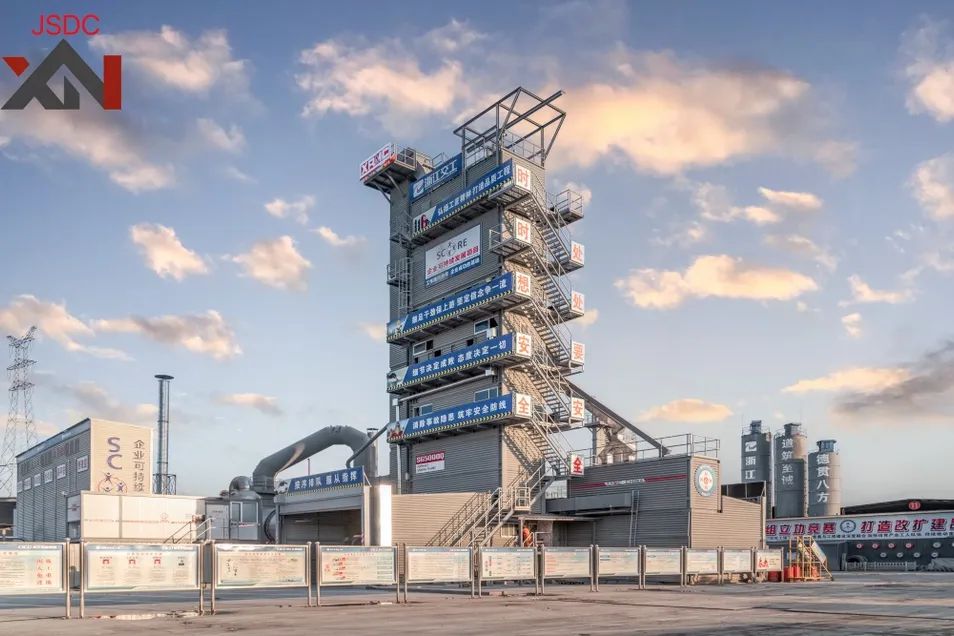

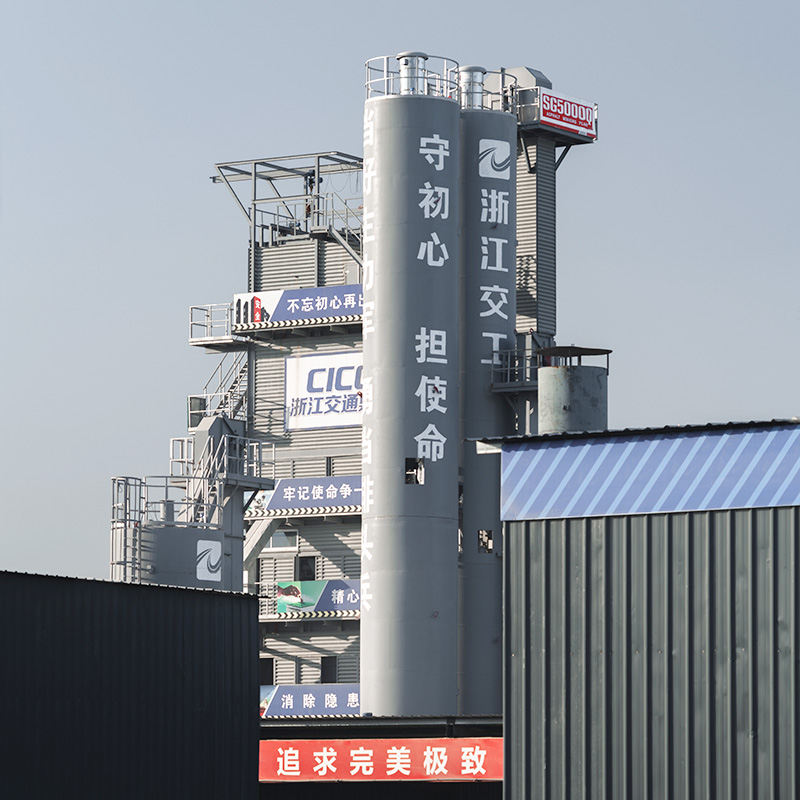

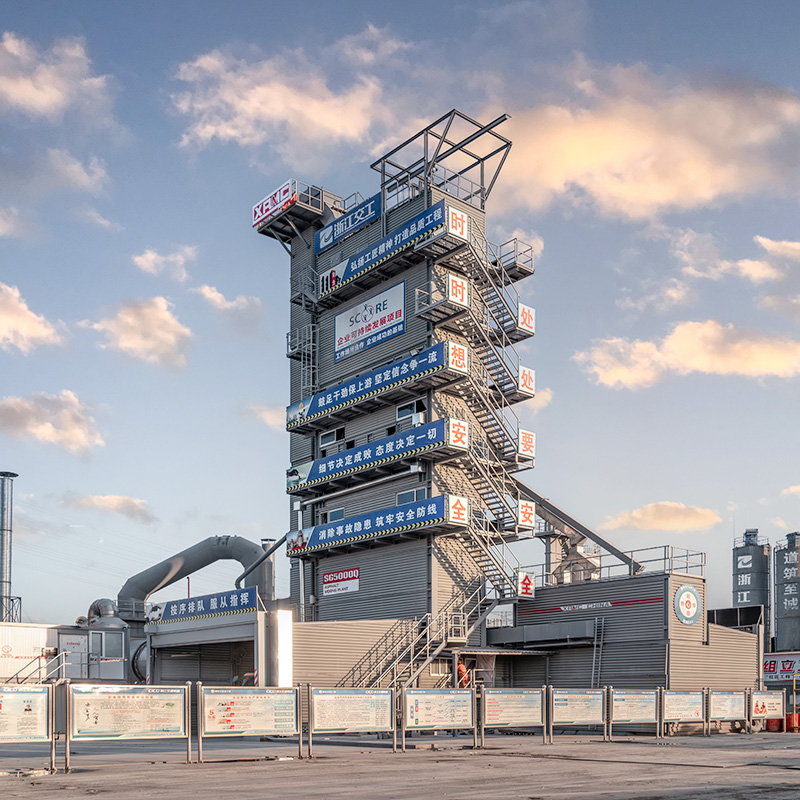

 | Project 1 The asphalt mixing station used this time is a green and intelligent asphalt mixing station independently developed and produced by CCCC XRMC. The rated production capacity is 120-160t/h, and the modular structure design is adopted, which not only significantly reduces the footprint, but also greatly improves the convenience and maintenance efficiency of equipment operation. The XRMC Energy Asphalt Mixing Station relies on advanced intelligent operating systems and strict traceability guarantee technology to ensure the efficiency of the production process, while producing high-quality asphalt mixtures that meet strict quality standards |

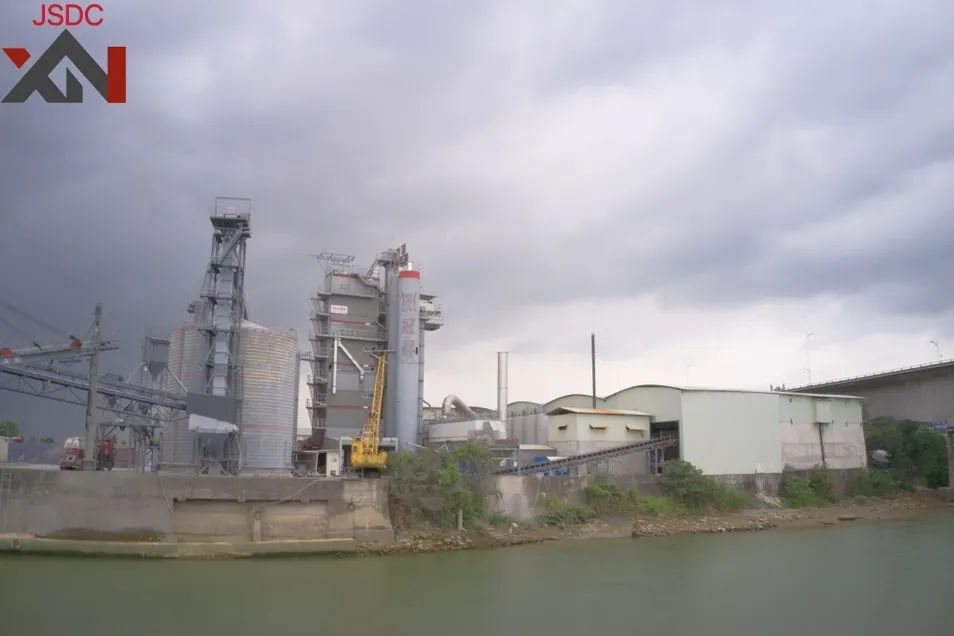

 | Project 2 The quality of asphalt concrete mixing plant production is mainly reflected in its indicators - stability and flow value, which characterize the stability and deformation resistance of the mixture at high temperatures. In fact, stability and flow value are indicators that reflect the material strength and deformation ability of asphalt concrete after material formation. So we should start controlling the quality of the mixture from the following main aspects. |

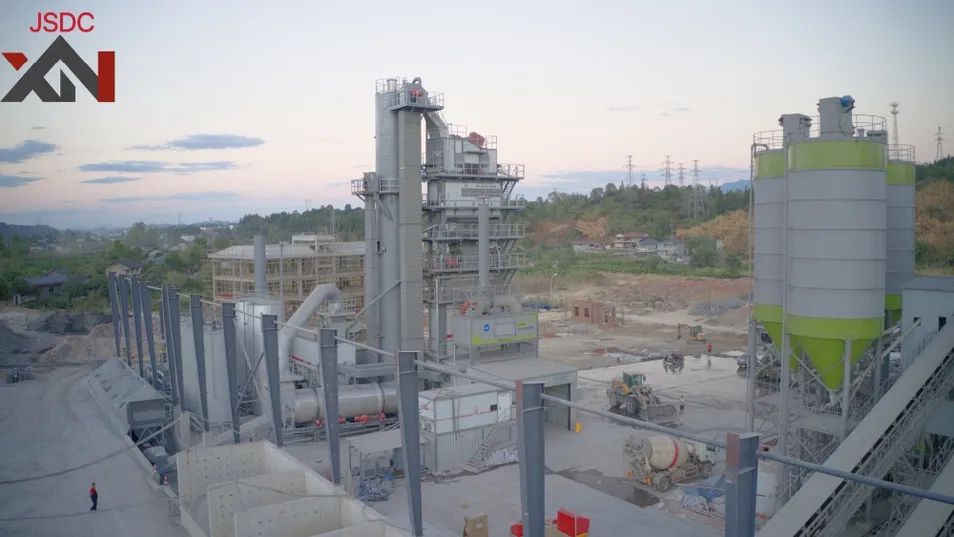

 | Project 3 To meet the mixing requirements of various working conditions, gradations, and materials, asphalt mixing equipment should consider the functions. |
Technical Specifications
(Custom configurations available upon request.)
Model | JSDC-4000 |
Rated productivity(t/h) | 180-400 |
Mixing bar capacity(kg/batch) | 3000 |
Total floor area(m×m) | 50×38=1900 |
Fuel consumption rate(kg/t) | ≤6.5 |
Type of fuel | diesel fuel,heavy oil,natural gas |
Finished material temperature(℃) | 160 |
Cumulative measurement accuracy of ore materials(%) | ≤±0.3 |
Measurement accuracy of asphalt materials(%) | ≤±0.1 |
Powder metering accuracy(%) | ≤±0.2 |
Oil-stone ratio deviation(%) | ≤±0.1 |
Stable and accurate discharge temperature(℃) | ±5 |
Ambient noise[dB(A)] | ≤80 |
Noise in the operator's ears [dB(A)] | ≤70 |
Dust removal method | Compartment,high-pressure pulse bag |
Dust emission concentration[mg/Nm3] | ≤80 |
