JSDC Typical Project Technical Parameters

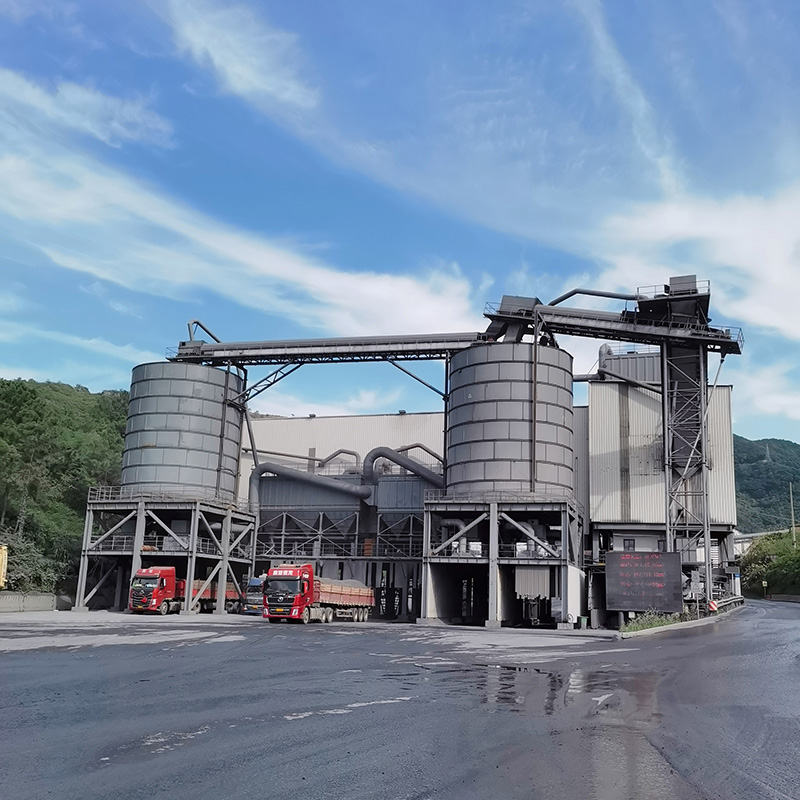

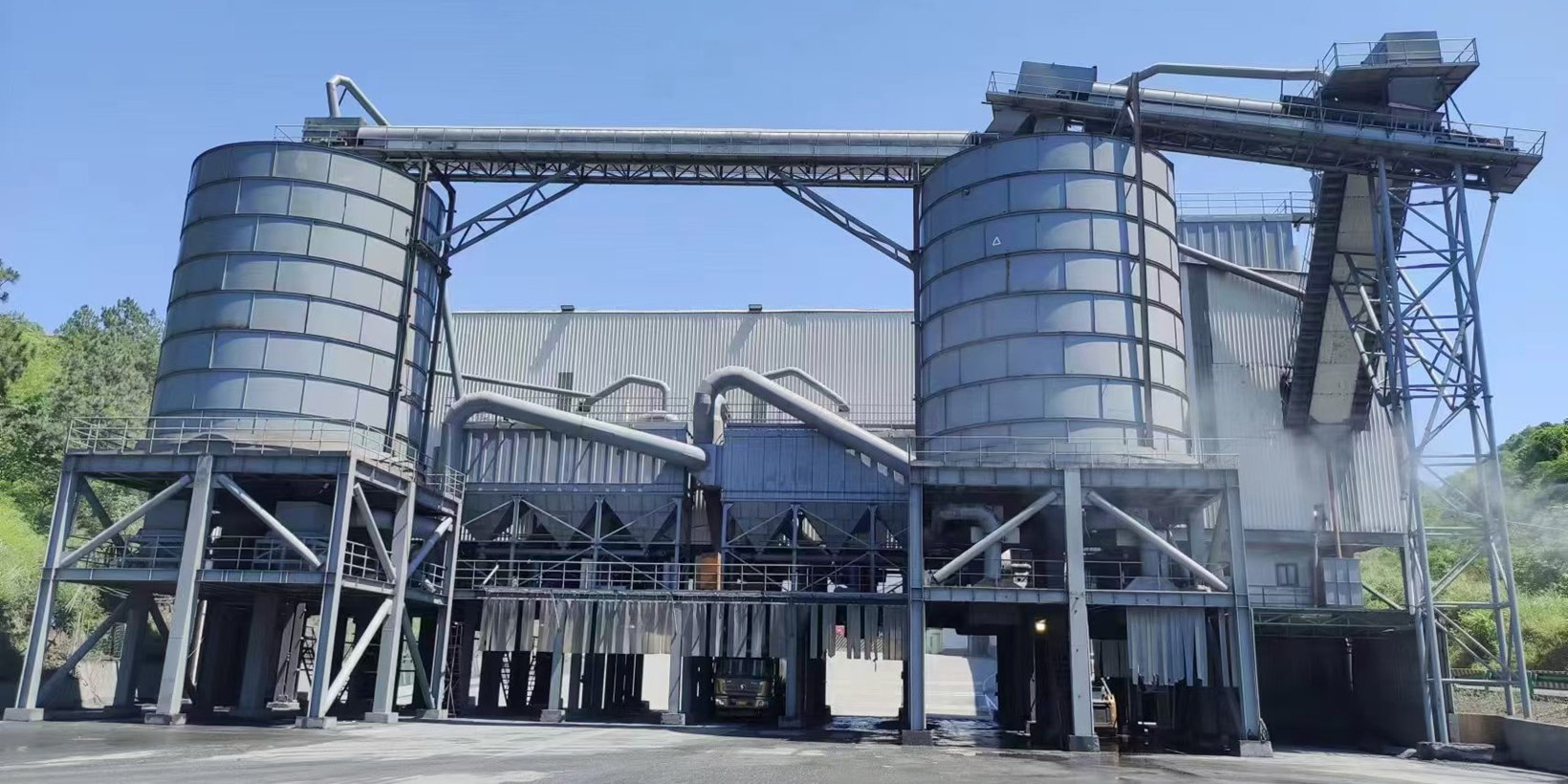

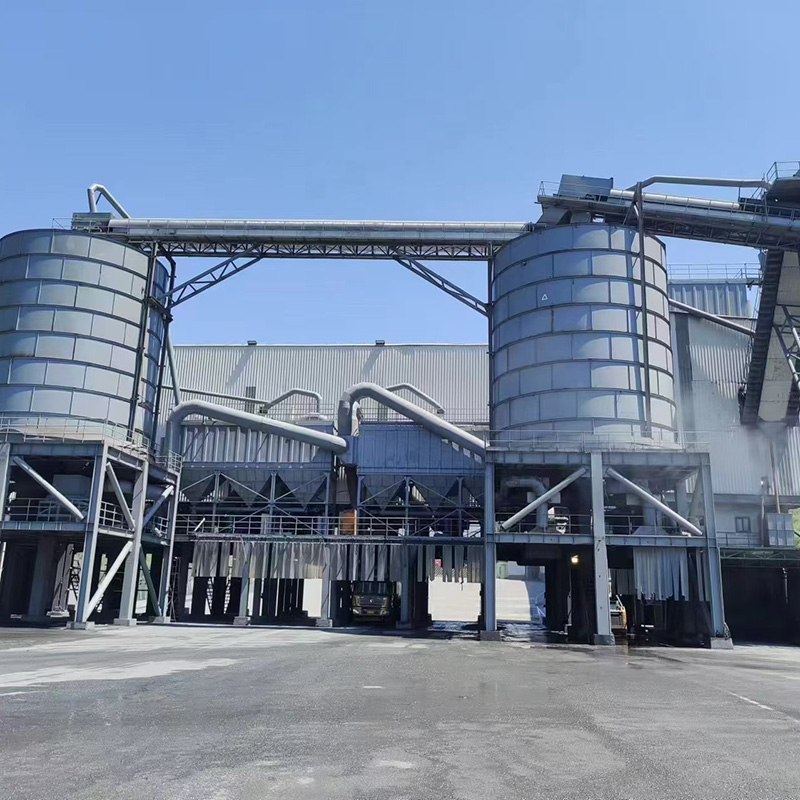

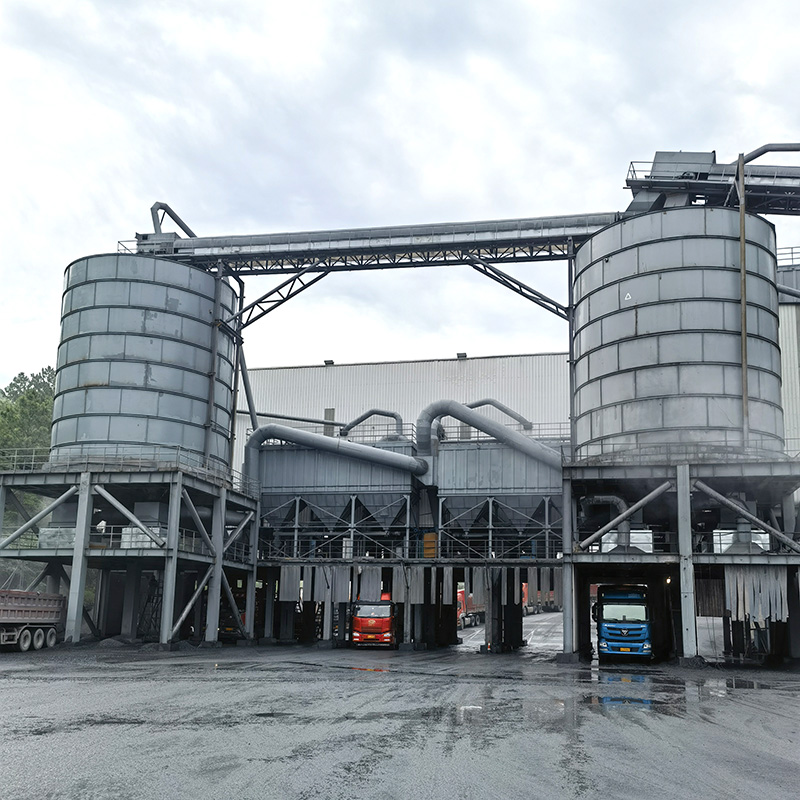

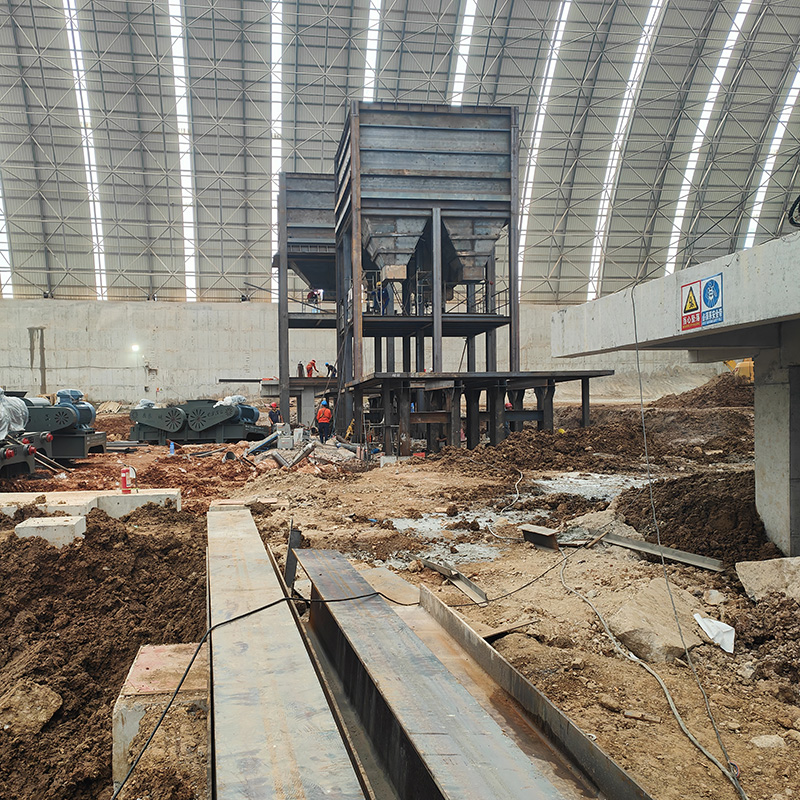

1400T Steel silo stroage transport system | |||
Component Number | Main profiles of components | Qty/MT | Material |
GZ-1-30 | H-beam | 32 | Q355B |

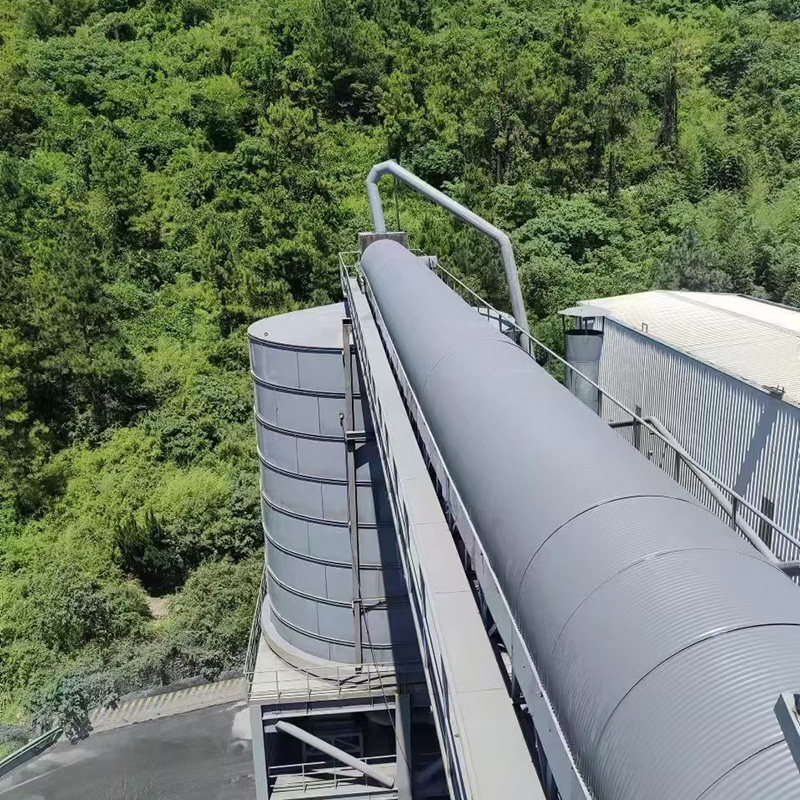

Silo | Plate, channel steel, angle steel | 43 | Q355B |

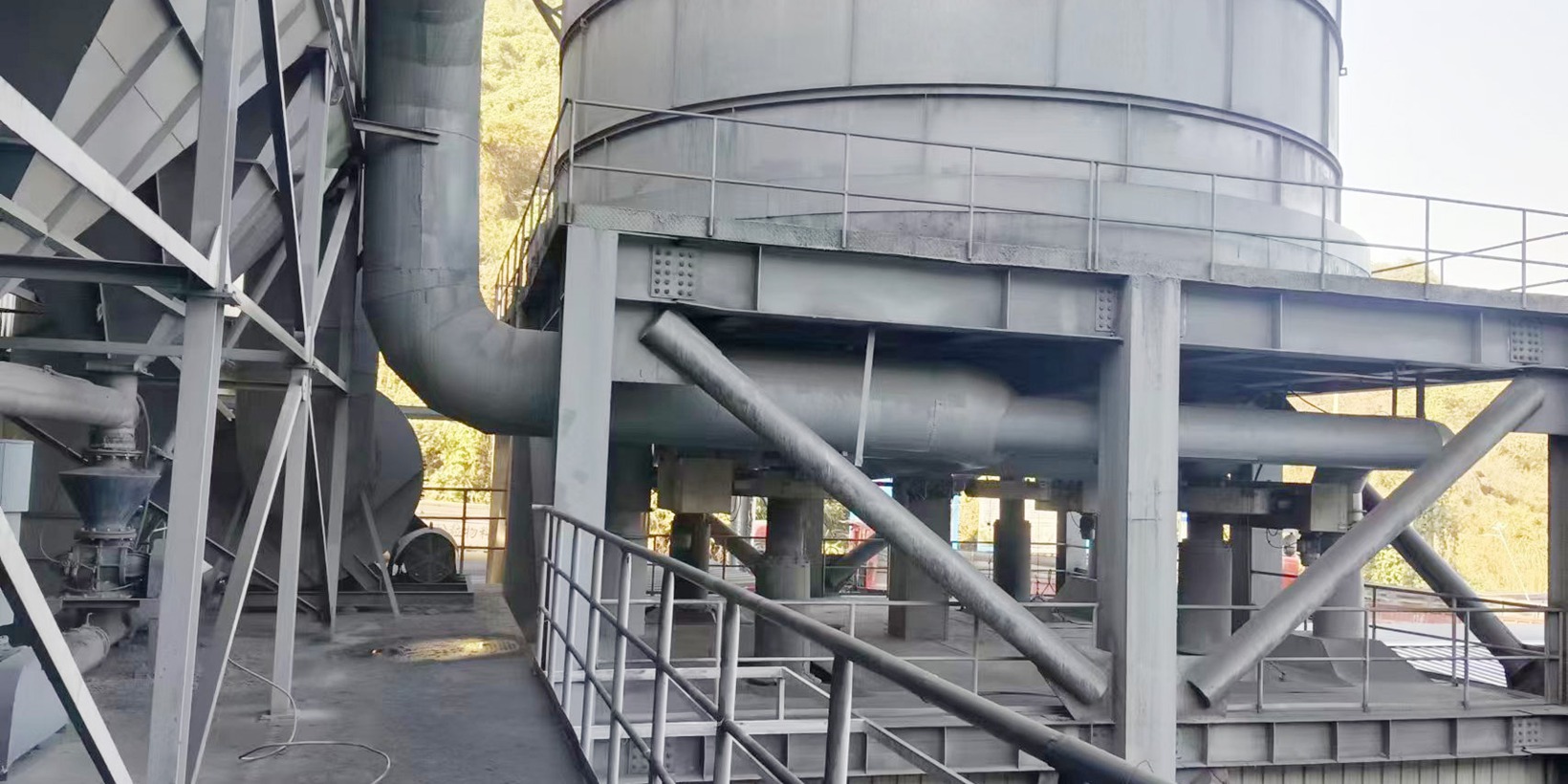

Silo platform | 59 | Q355B | |
Embedded parts of ring beam | bolt | 1 | Q355B |
Ring beam reinforced plate | plate | 0.45 | Q355B |
Reinforced cover plate for ring beam | Galvanized sheet metal | 1.2 | Q355B |
embedded bolt | bolt | 1 | Q355B |
Basic embedded board | Board template | 0.5 | Q355B |
Plate grinding tool | 0.7 | Q355B | |
bolt | 1 | Q355B | |
Bilateral maintenance platform | 100 * 48 * 5.3/5.0 patterned board | 4 | Q235B |

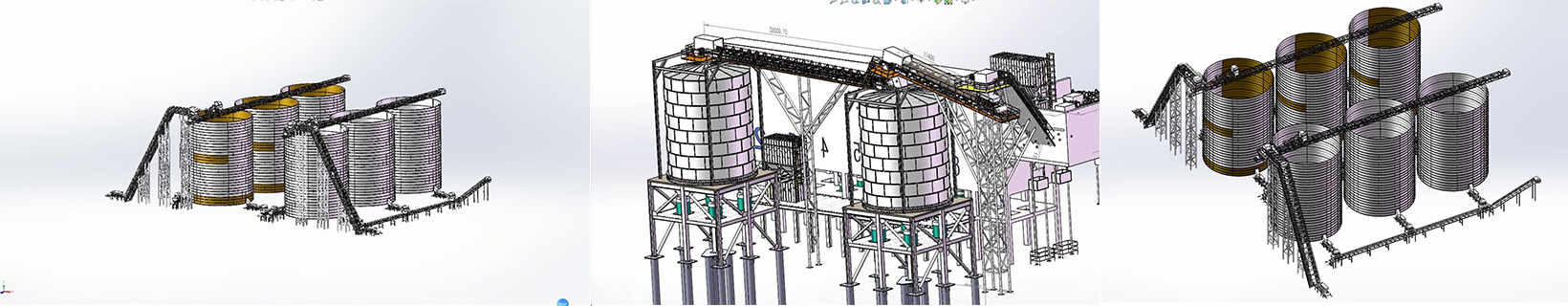

The Advantages of 3D Dynamic
(1)Demonstrations
Enhanced Visualization:
3D dynamic models provide realistic, interactive representations of complex structures, allowing stakeholders to explore every angle and detail.
(2)Improved Communication
By simulating real-world scenarios, these demonstrations bridge the gap between technical teams and non-technical audiences, ensuring clarity and alignment.
(3)Cost and Time Efficiency
Virtual prototyping reduces the need for physical mock-ups, minimizing material waste and accelerating decision-making processes.
 | 1）Efficient loading and unloading and precise control： Unmanned operation: The intelligent loading system uses laser scanning and AI visual positioning to achieve rapid loading in 3-5 minutes per vehicle, increasing efficiency by more than three times and achieving weighing accuracy of ± 0.5%, eliminating overloading/underloading problems. Automated cleaning: The track type cleaning machine adopts a bidirectional rotating structure of "self rotation+revolution", combined with a variable pitch spiral winch, to achieve no dead corners cleaning at the bottom of the warehouse. The cleaning capacity reaches 300 tons/hour, avoiding safety hazards caused by manual entry into the warehouse |
 | 2) Intelligent monitoring and security protection： Real time level monitoring: Physical contact measurement technology penetrates dust interference, with a level error of<± 1%. It supports 24-hour continuous monitoring and multi-level threshold warning, reducing the risk of manual inspection. Permission management and error prevention: The electronic access control lock for the feeding port is combined with the card swiping feeding function to ensure that the operation is traceable and prevent misoperation. |

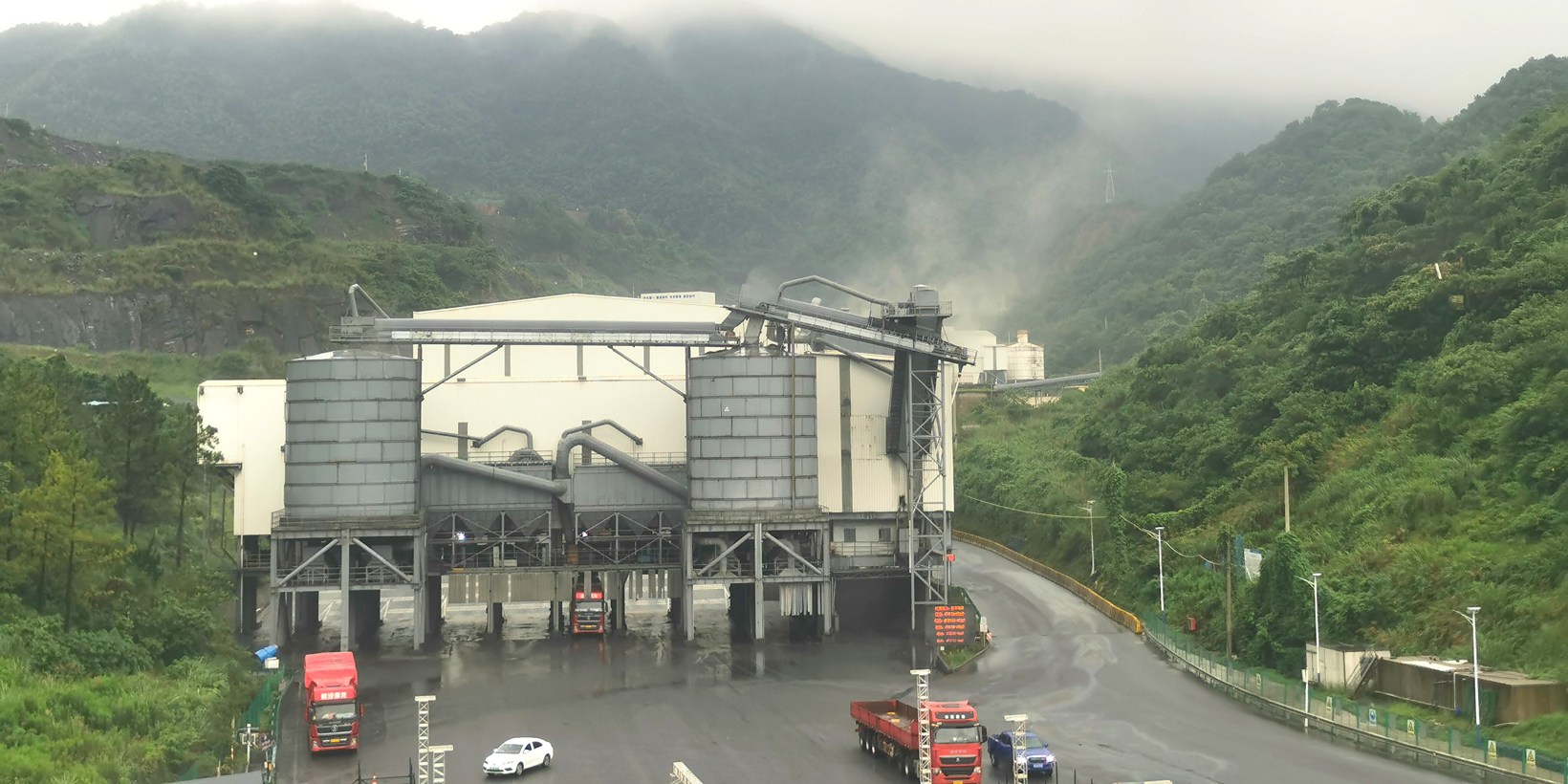

 | 3)Space optimization and cost savings： High density storage: Large silos (with a diameter of 6-32 meters and a height of 30 meters) utilize vertical space to reduce footprint and increase storage capacity. Low maintenance cost: Modular design simplifies equipment maintenance, with an annual operating days of over 300 days, reducing downtime losses. |
 | 4) Environmental Protection and Compliance： Dust suppression and collision prevention design: The intelligent loading system integrates dust suppression functions to reduce dust pollution; Explosion proof motor and buffer support point design for clearance machine to ensure safe operation under extreme working conditions |
