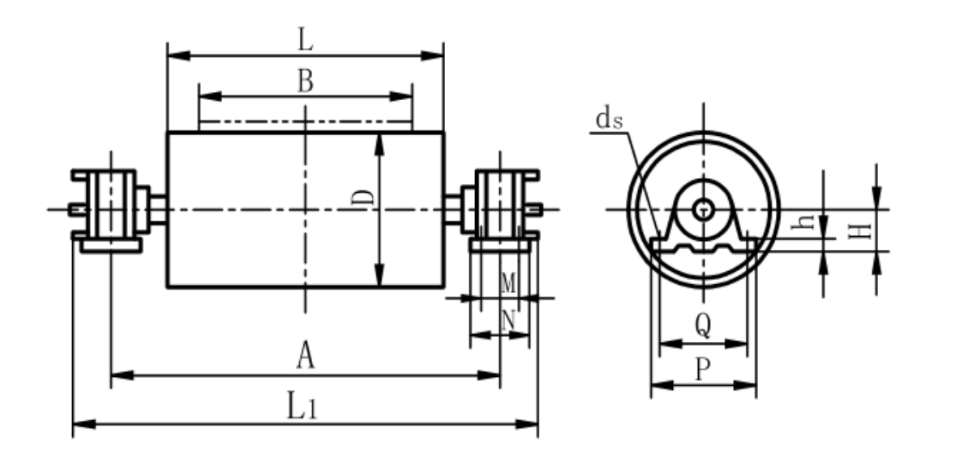

Technical Specifications
Note: Fixing fasteners to the rack, Not included in the diagram.
B | D | A | L | L₁ | Q | P | H | h | M | N | ds | Rolling bearing | Weight(KG) | Drawing No. |
500 | 320 | 800 | 600 | 902 | 260 | 320 | 90 | 33 | 70 | 一 | 22 | 1310 | 93 | TD1B1 |
400 | 104 | TD1B2 | ||||||||||||
650 | 320 | 960 | 750 | 1062 | 260 | 320 | 90 | 33 | 70 | 一 | 22 | 1310 | 104 | TD2B1 |
400 | 280 | 340 | 100 | 27 | 1312 | 132 | TD2B2 | |||||||
500 | 155 | TD2B3 | ||||||||||||
800 | 320 | 1180 | 950 | 1282 | 280 | 340 | 100 | 33 | 70 | — | 27 | 1312 | 134 | TD3B1 |
400 | 1292 | 350 | 410 | 120 | 90 | 1316 | 211 | TD3B2 | ||||||
| 500 | 237 | TD3B3 | ||||||||||||
| 630 | 268 | TD3B4 |
1000 | 400 | 1410 | 1150 | 1512 | 280 | 340 | 100 | 33 | 70 | — | 27 | 1312 | 191 | TD4B2 |
500 | 1522 | 350 | 410 | 120 | 90 | 1316 | 319 | TD4B3 | ||||||
630 | 367 | TD4B4 | ||||||||||||
800 | 444 | TD4B5 | ||||||||||||
1200 | 400 | 1660 | 1400 | 1762 | 280 | 340 | 100 | 33 | 70 | — | 27 | 1312 | 235 | TD5B2 |
500 | 1790 | 380 | 460 | 140 | 130 | 80 | 3520 | 418 | TD5B3 | |||||
630 | 473 | TD5B4 | ||||||||||||
800 | 559 | TD5B5 | ||||||||||||
1000 | 659 | TD5B6 | ||||||||||||
1400 | 400 | 1860 | 1600 | 1962 | 280 | 340 | 100 | 33 | 70 | — | 27 | 1312 | 259 | TD6B2 |
500 | 1990 | 380 | 460 | 140 | 130 | 80 | 3520 | 454 | TD6B3 | |||||
630 | 514 | TD6B4 | ||||||||||||
800 | 606 | TD6B5 | ||||||||||||
1000 | 792 | TD6B6 | ||||||||||||
1250 | 995 | TD6B7 |

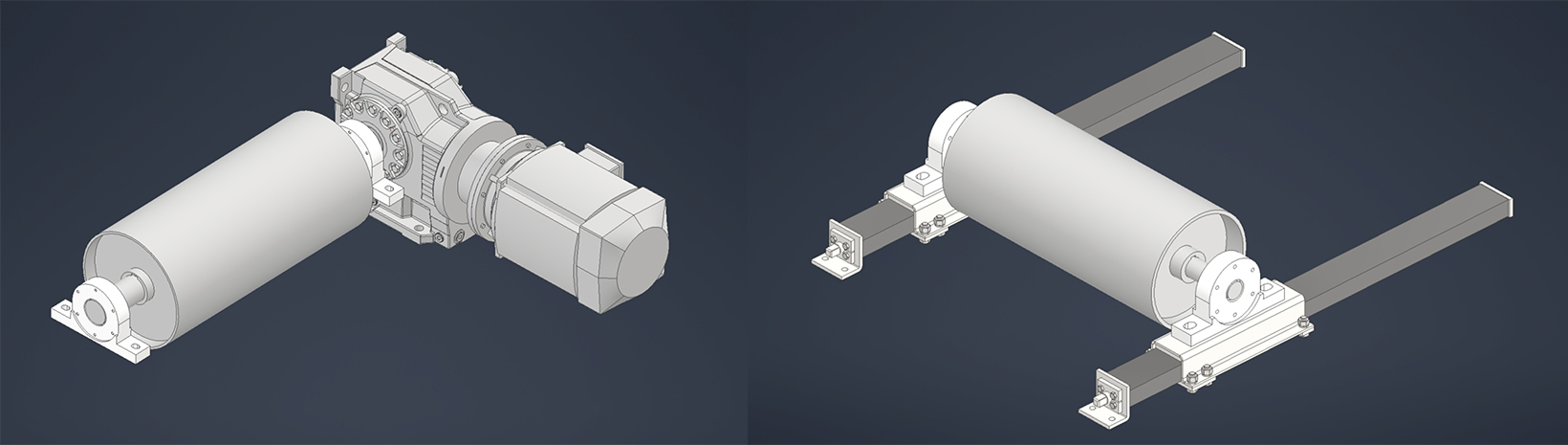

The Advantages of 3D Dynamic
(1) Demonstrations
Enhanced Visualization:
3D dynamic models provide realistic, interactive representations of complex structures, allowing stakeholders to explore every angle and detail.
(2) Improved Communication
By simulating real-world scenarios, these demonstrations bridge the gap between technical teams and non-technical audiences, ensuring clarity and alignment.
(3) Cost and Time Efficiency
Virtual prototyping reduces the need for physical mock-ups, minimizing material waste and accelerating decision-making processes.

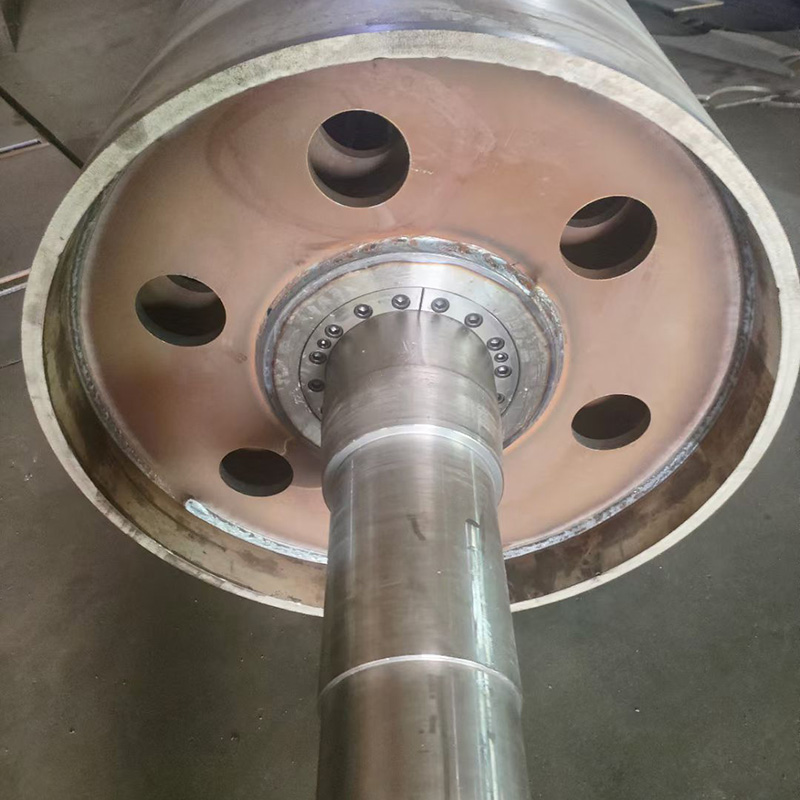

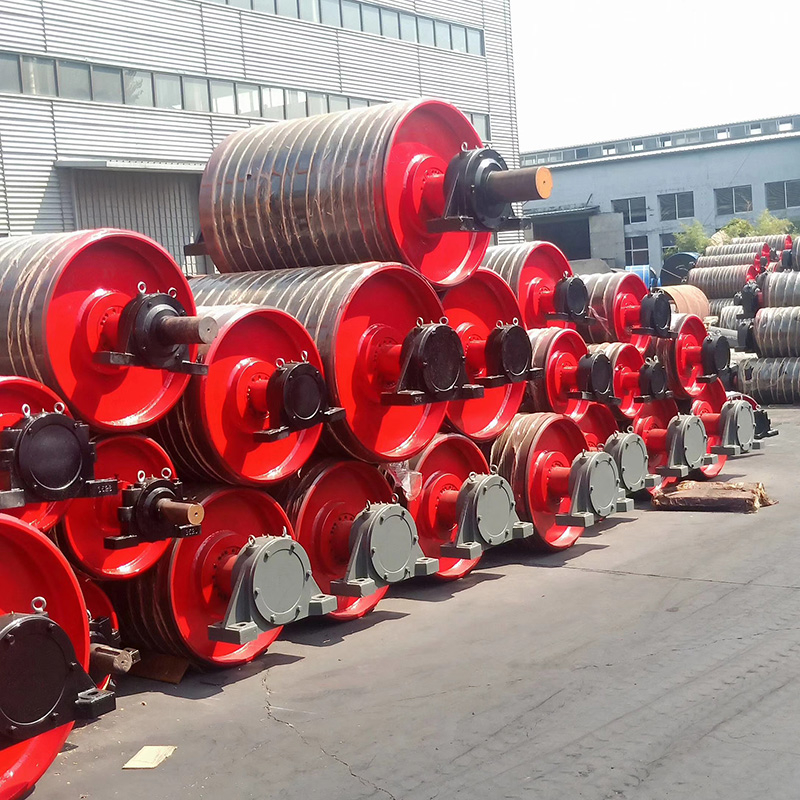

We can provide full series of belt conveyor heavy duety rollers

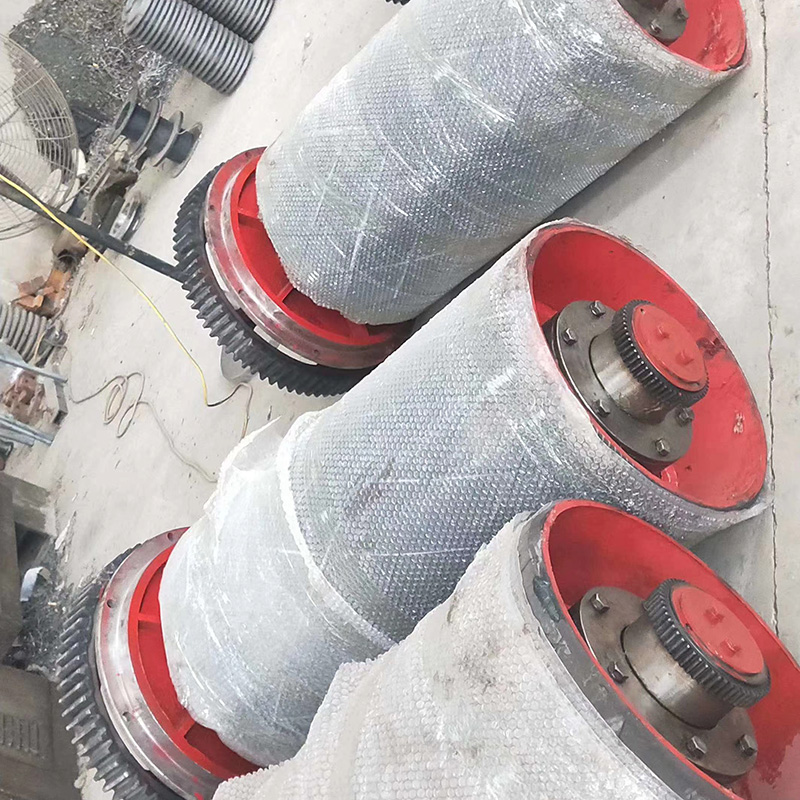

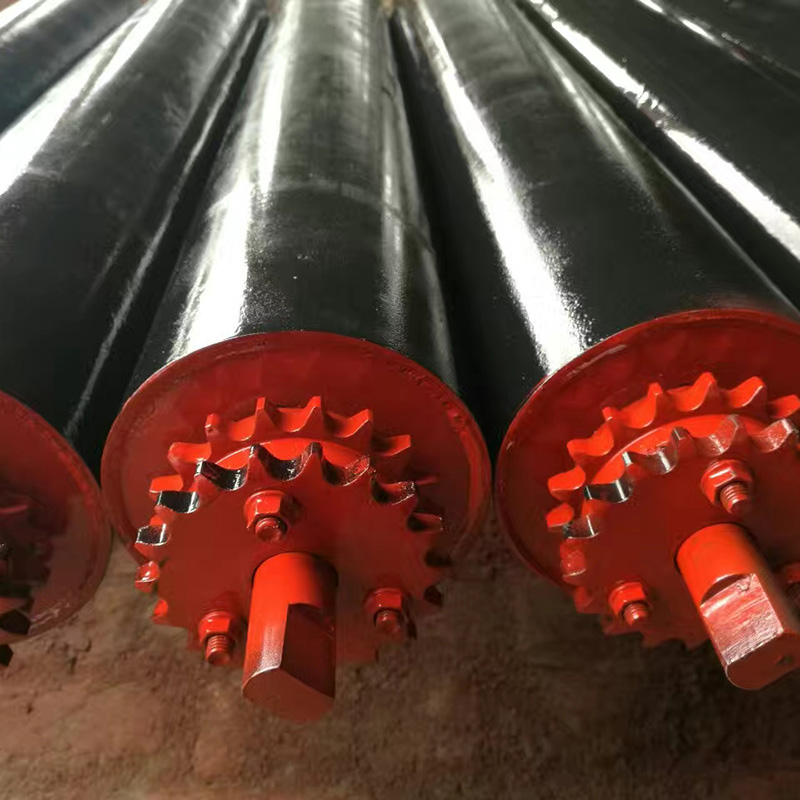

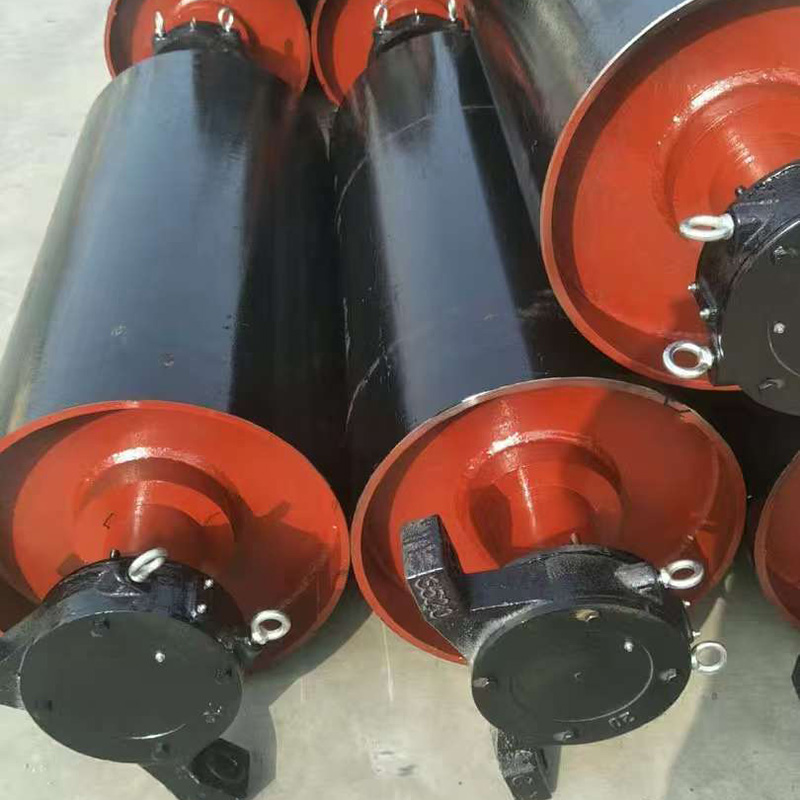

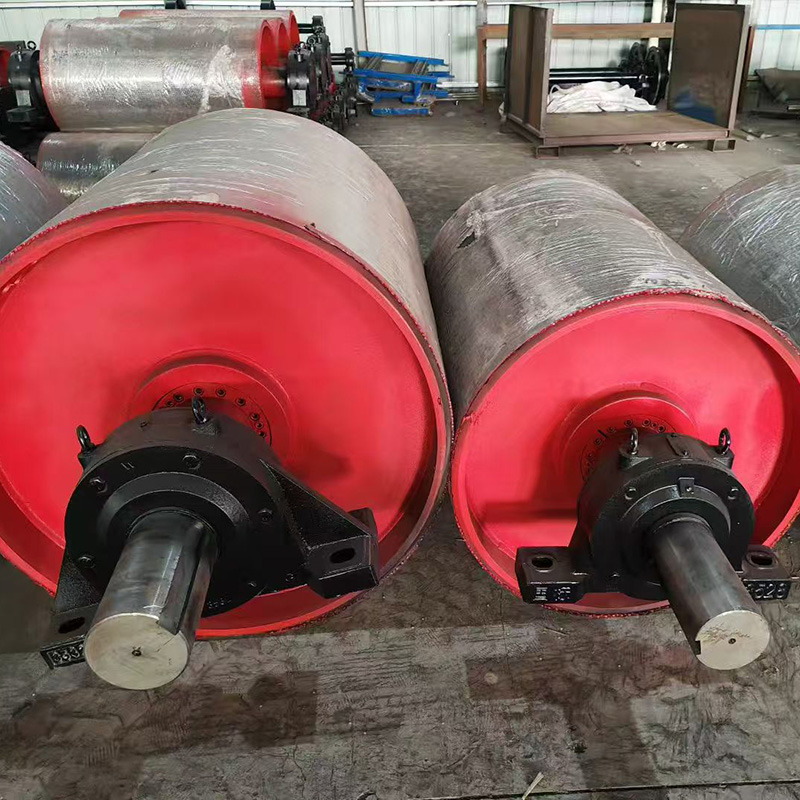

 | Drive roller: Built in motor or external power source (such as TDY75 oil cooled electric drum), used to transmit power to the conveyor belt. Typical application: Heavy load conveying in mining and metallurgical industries (such as explosion-proof electric drum for mining). |
 | Change direction roller（Passive Roller）: Non powered design, used to change the direction of conveyor belt operation, often coated with glue (such as polyurethane glue) to reduce friction. |

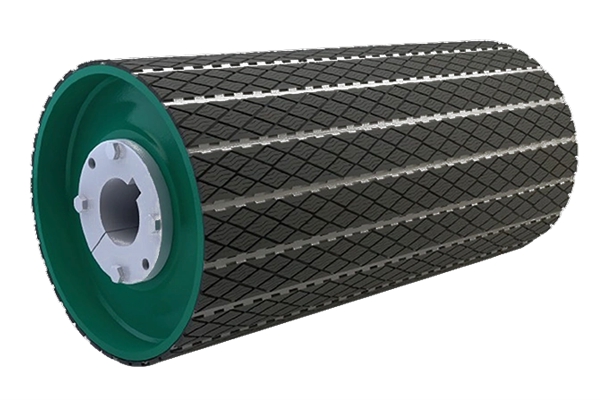

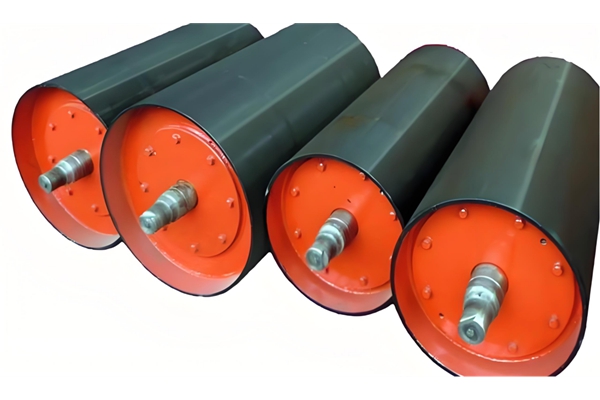

 | Rubber covered roller: Surface covered with rubber (natural rubber/polyurethane), anti slip and wear-resistant, suitable for high hygiene requirements such as food and chemical industries |

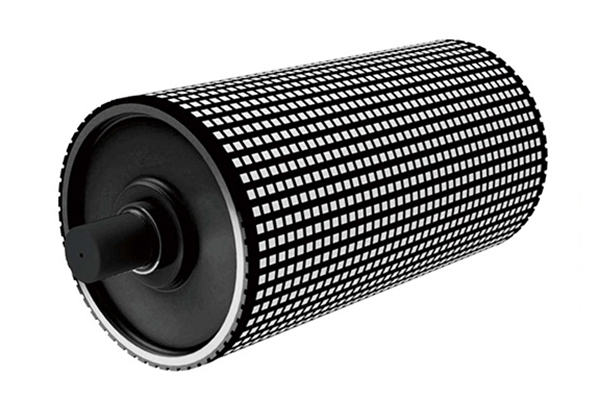

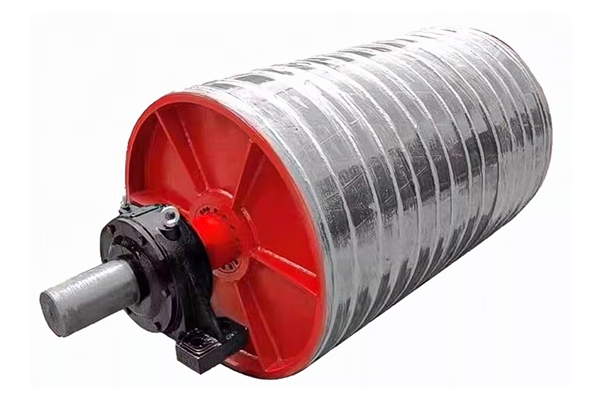

 | Ceramic covered Roller： It is a key component of industrial conveying equipment, whose core structure is a composite ceramic material (such as alumina, silicon carbide) or ceramic rubber plate on the surface of a metal based cylinder. Through special processes (such as cold bonding and hot vulcanization), wear-resistant ceramic sheets are embedded in the rubber layer to form a high hardness and high friction composite surface. |
